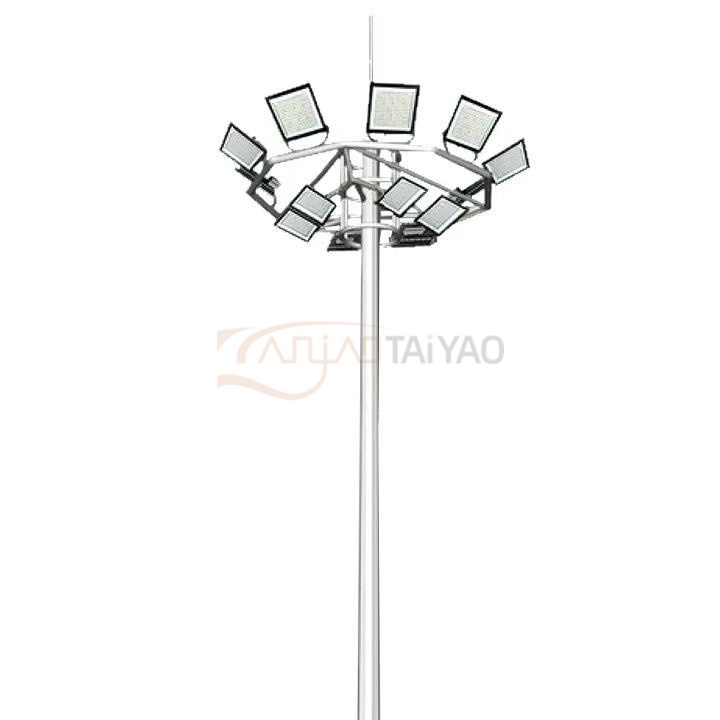

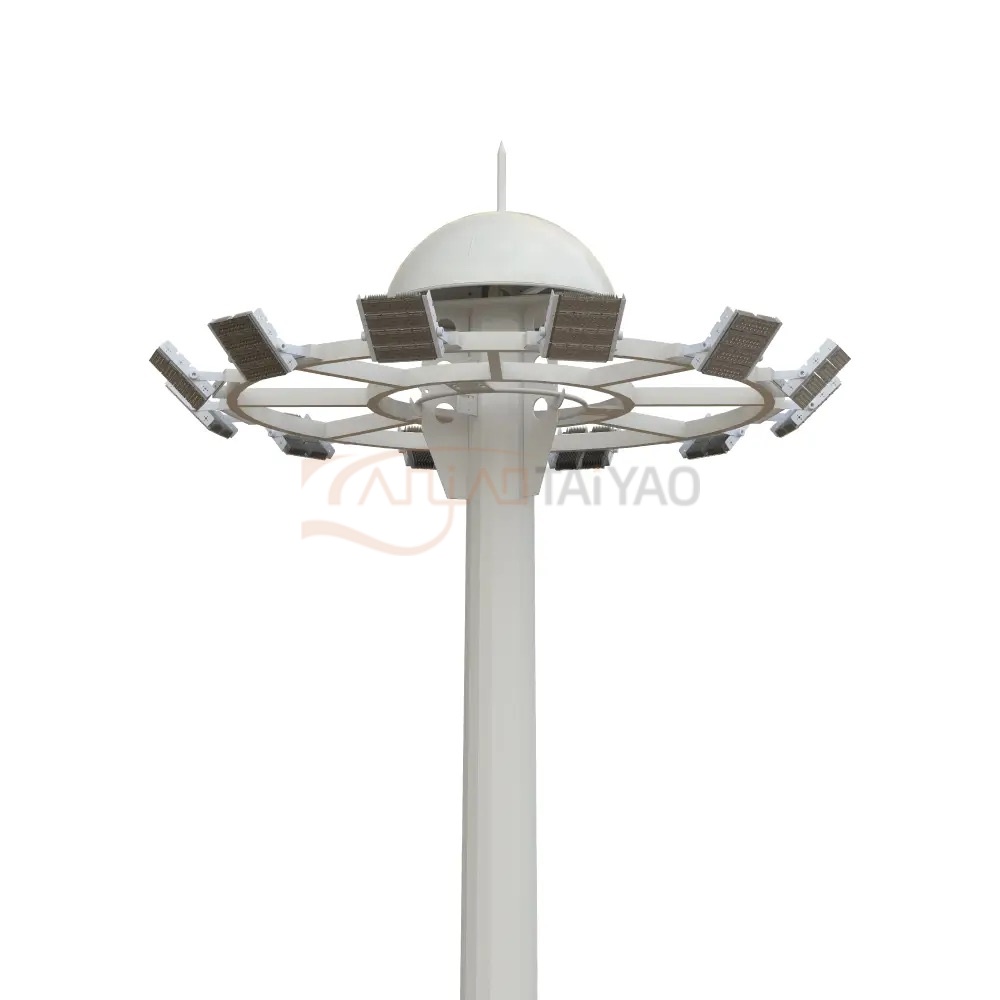

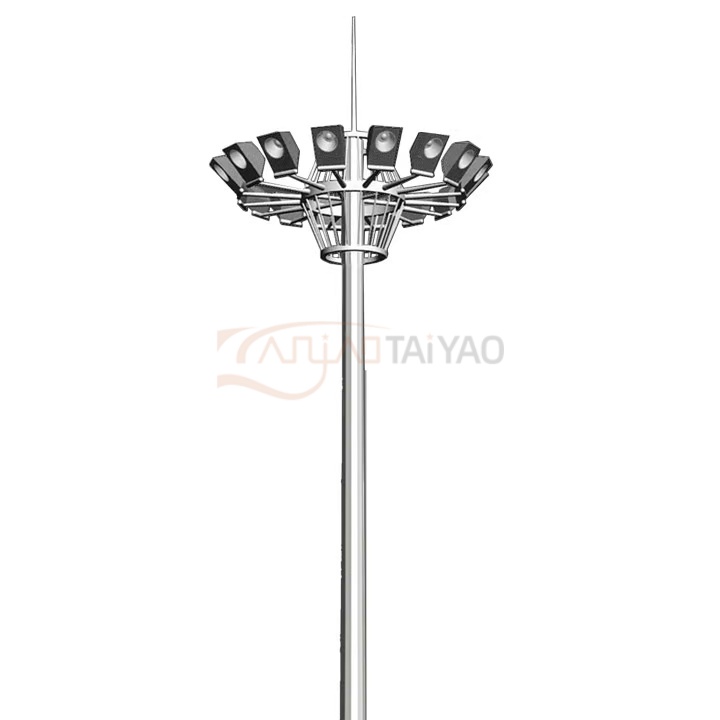

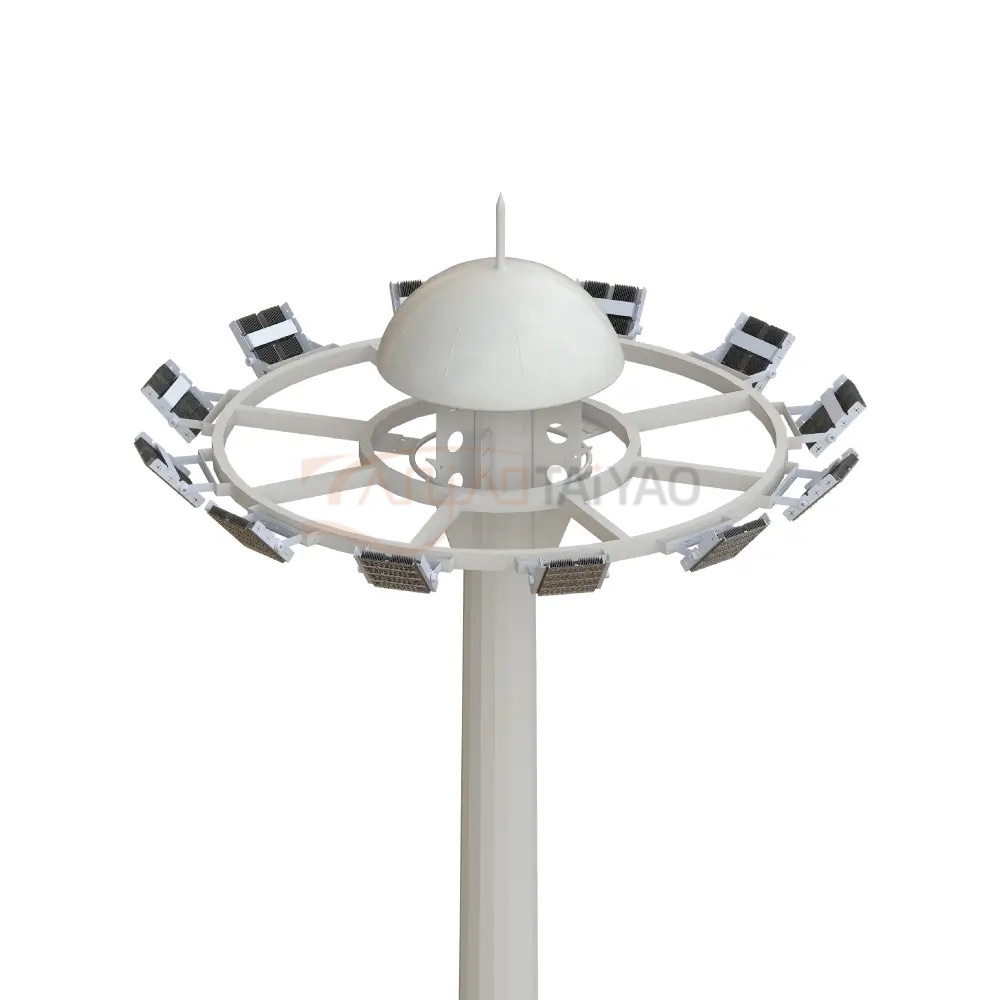

High Mast Lamp engineered for large-area illumination at highways, airports, ports, and plazas. Typical poles range from 15–50 m and support multi-fixture headframes, with an optional raising & lowering system for safer ground-level maintenance.
This cutting-edge outdoor lighting solution, powered by LED technology, is renowned for its superior brightness, energy efficiency, and longevity. Ideal for large-scale illumination needs in settings like stadiums, parking lots, and construction sites, it boasts a waterproof and durable design. Easy to mount on poles, walls, or the ground, this light ensures even and powerful lighting for any outdoor space.

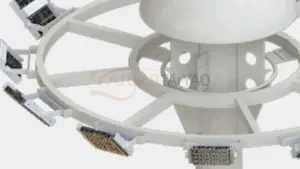

This is a robust mounting structure used to support outdoor lighting fixtures, such as streetlights or floodlights, ensuring they are securely attached to poles or walls. It is generally crafted from corrosion-resistant materials like aluminum or stainless steel to endure harsh weather conditions while maintaining stability. The design facilitates easy installation and allows for adjusting the angle of the light to optimize coverage, also simplifying maintenance and replacement tasks. It is widely used in urban lighting, parking lots, and industrial areas for effective illumination support.

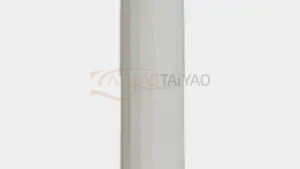

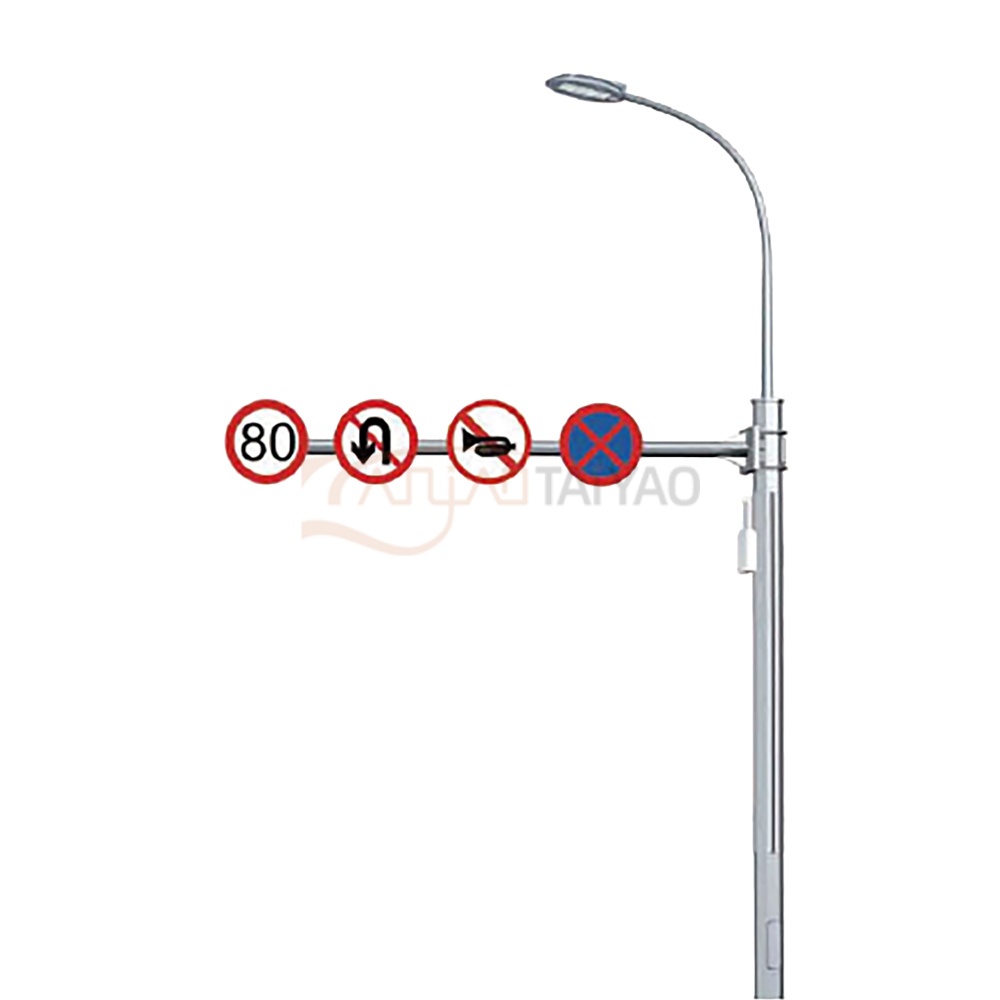

This is a tall, multi-sided vertical structure used to support outdoor lighting fixtures, flags, or signage, commonly found in urban streets, highways, or large public spaces. It is typically constructed from sturdy materials like galvanized steel or aluminum to resist corrosion and endure harsh weather conditions, ensuring long-term durability. The polygonal shape provides enhanced structural strength while offering a sleek, modern appearance. Available in various heights, it can be customized to meet specific lighting or visibility needs, with a base designed for secure ground installation.

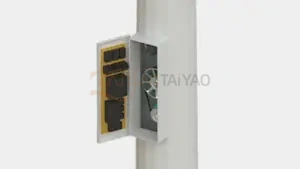

IP66 cabinet hosting MPPT solar controller (≥98% tracking efficiency), DC protection (MCB/fuse), and surge protection. Optional remote monitoring (RS-485/Modbus, 4G/NB-IoT/LoRa) for alarms, SOC, and dimming profiles. Clean wiring with ferrules and labels for faster maintenance. Conformal-coated PCBs for high-humidity regions.

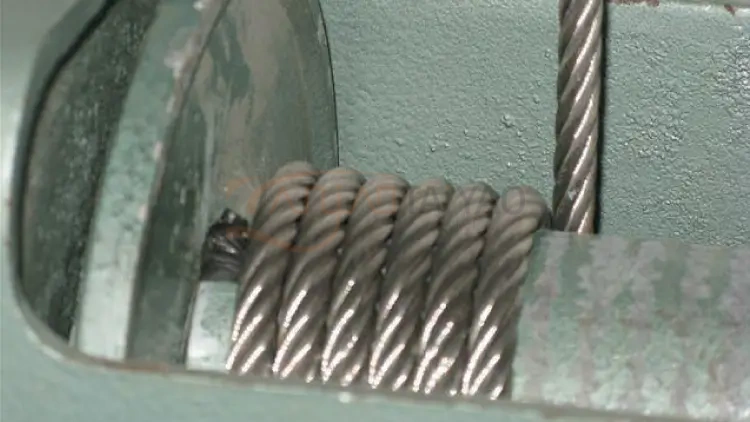

Robust cable system for high-mast lights, enabling safe and smooth raising and lowering of the luminaire for easy maintenance and long-term reliability.

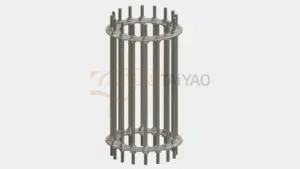

Galvanized J-bolt anchors (M24/M30) with leveling nuts and template. Foundation recommendation provided by pole height and soil class (e.g., C25/30 concrete). Cable ducts and earthing rod included. Detailed CAD for bolt circle, projection length, and grout thickness.
| LED floodlight | LED Power per Lamp | 200-1600W |
| Lamp Qty | Customziable | |
| Luminous Efficiency | >125lm/w (SMD 3030) / >175lm/w (SMD 5050) | |
| Color Temperature | 3000K – 6500K | |
| Beam Angle | 30°,60°,90°,120° | |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |
| Working Voltage | 90 – 305V AC, 50/60Hz | |
| Housing Material | Die-casting Aluminum | |
| Lens Material | PC / PC + tempered glass | |
| Mast Pole | Pole Height | 25-30 Meters |
| Section Shape | Polygonal | |
| Joint of Mast Poles | Insert Mode, Inner Flange Mode, Face To Face Joint Mode | |
| Material & Finishing | galvanized steel with powder coated (OPTIONAL) | |
| Raising & Lowering System | OPTIONAL | |
| Climbing Ladder | OPTIONAL | |
| Accessories | Foundation Kits, Lighting Rod and Rain Cover | |
| System | Working Temperature | -20 – 65℃ |
| Protection Levels | IP65 – IP66 / IK09 | |
| Wind Resistance | >120km/h | |
| Life Span | LED Flood Lamp: > 20years | |
| Mast Pole: > 30years | ||
| Warranty | 5 years | |
