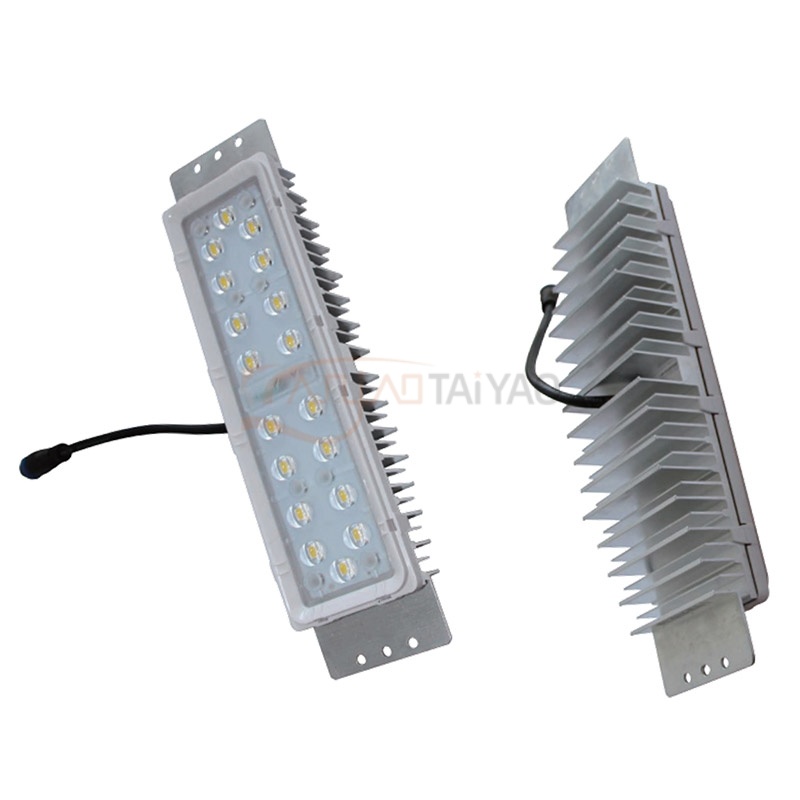

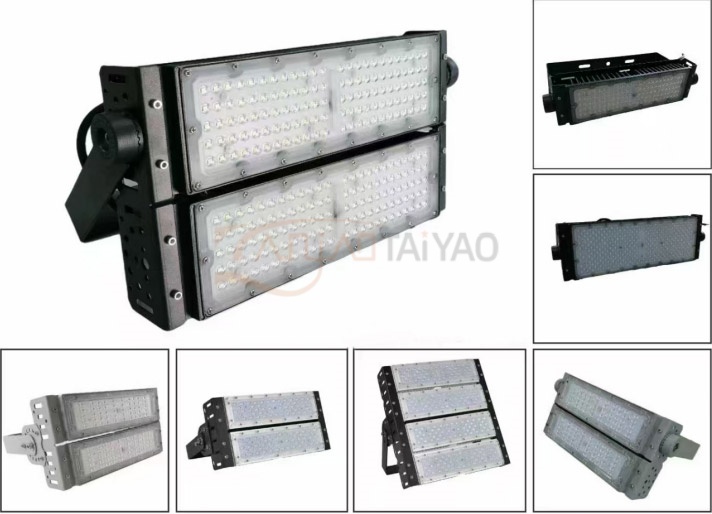

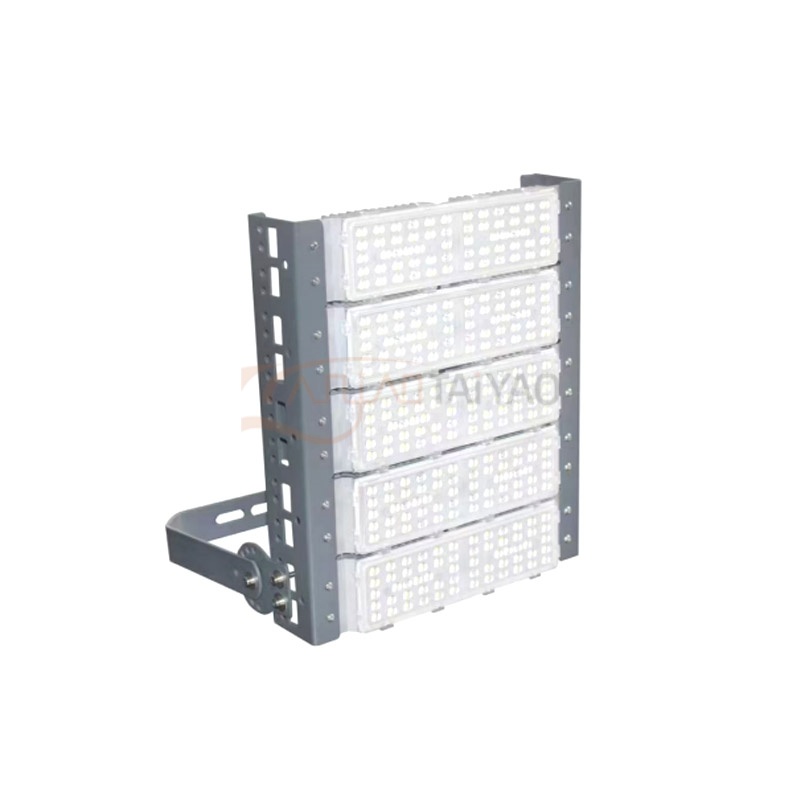

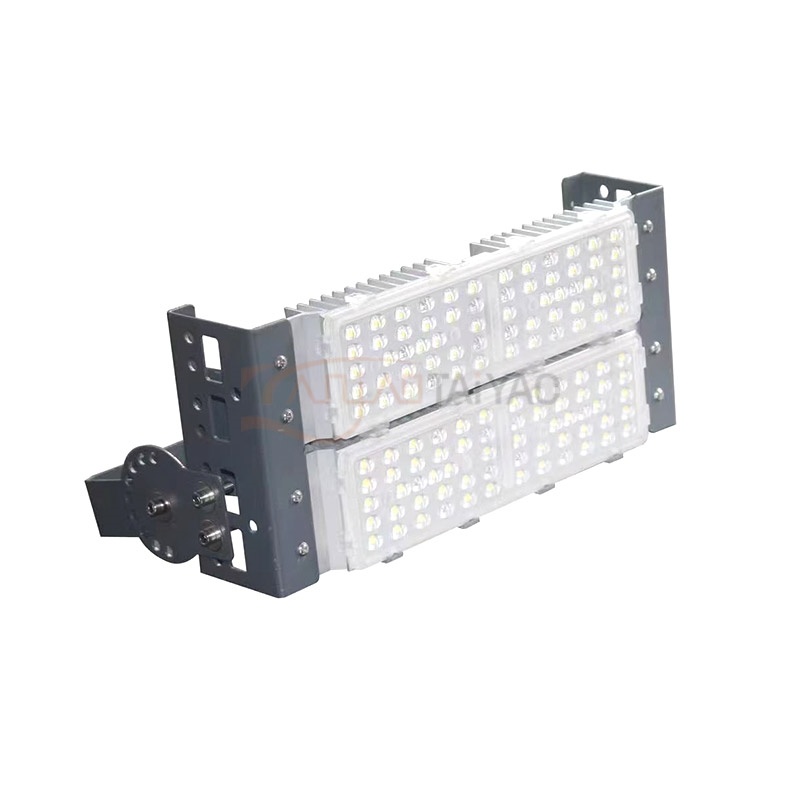

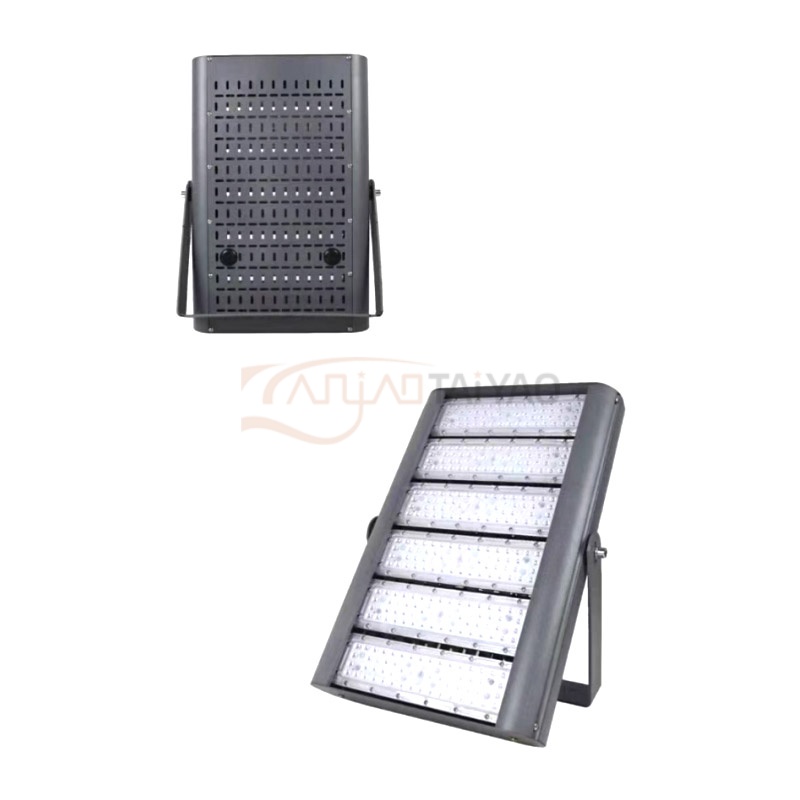

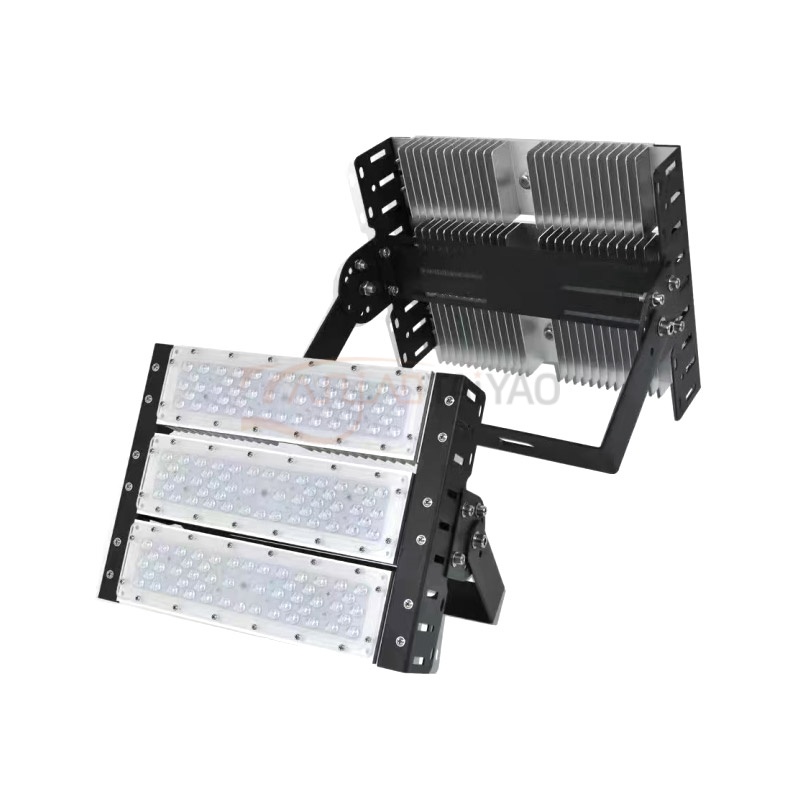

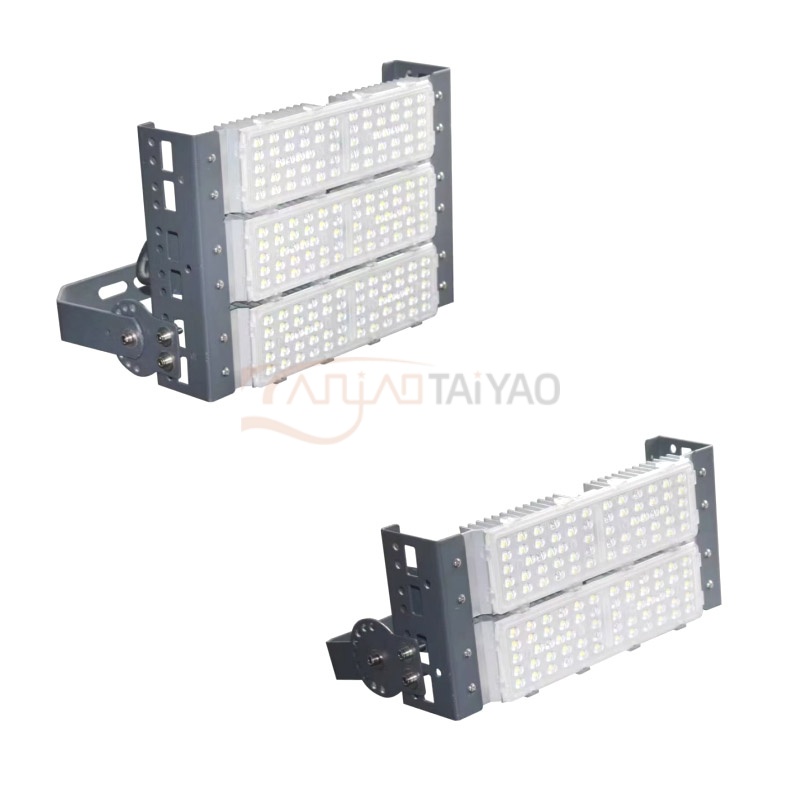

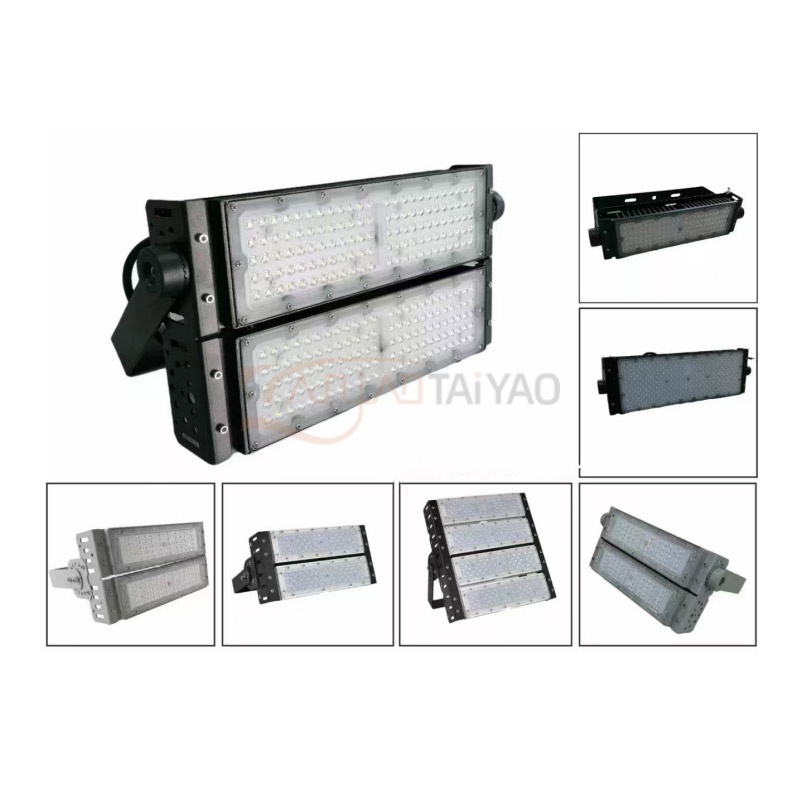

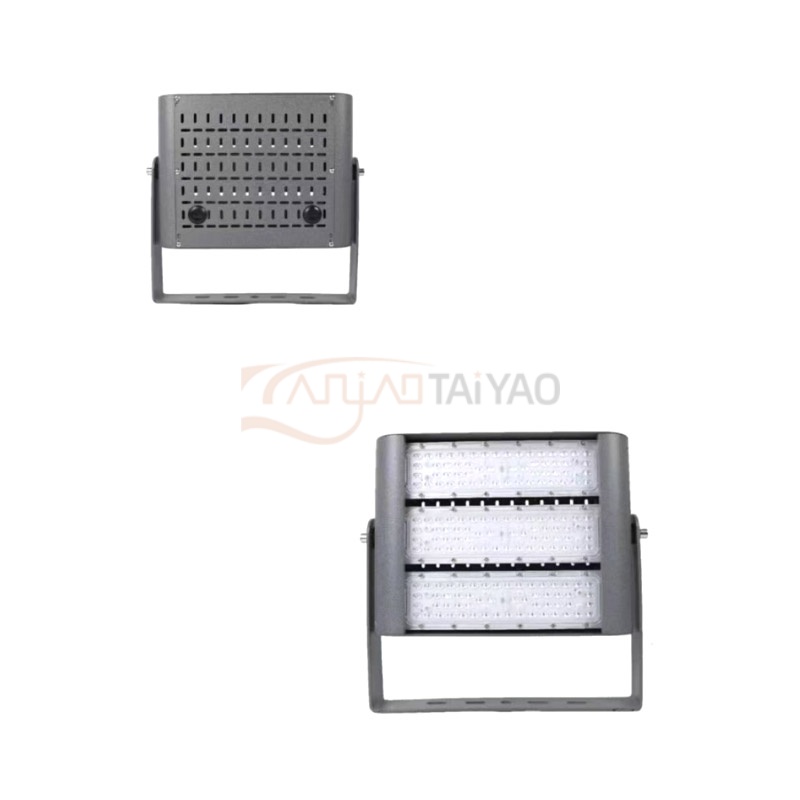

The TY-TGD16 LED Flood Light is engineered for sites that need both output and flexibility. Configure one or more linkable modules—each rated up to 120 W—to match throw distance and mounting height, then select 8° to 100° beam distributions for clean, uniform coverage. An adjustable mounting bracket simplifies on-site alignment, while die-cast aluminum construction, PC optics, IP66/IK09 durability, and a −40 to 50 °C operating range ensure dependable service. Choose SMD 3030/5050 LED packages with MEAN WELL/PHILIPS/MOSO/INVENTRONICS drivers to meet project efficiency targets.
1. Utilizing shared molds, the power parameters can be customized to meet the needs of different customers.

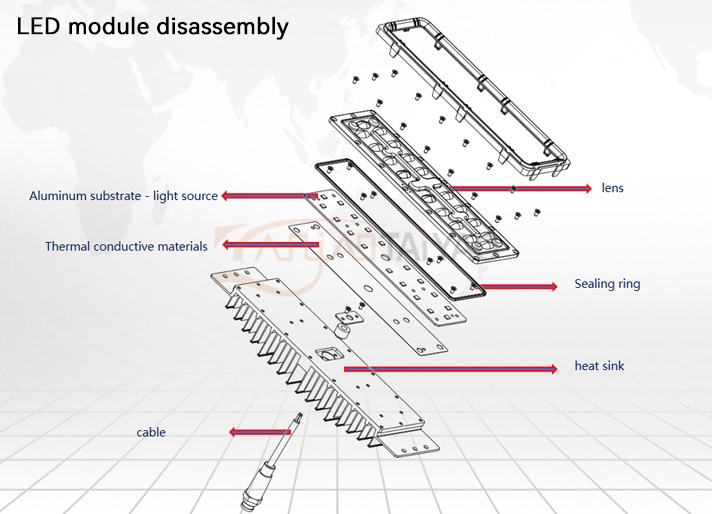

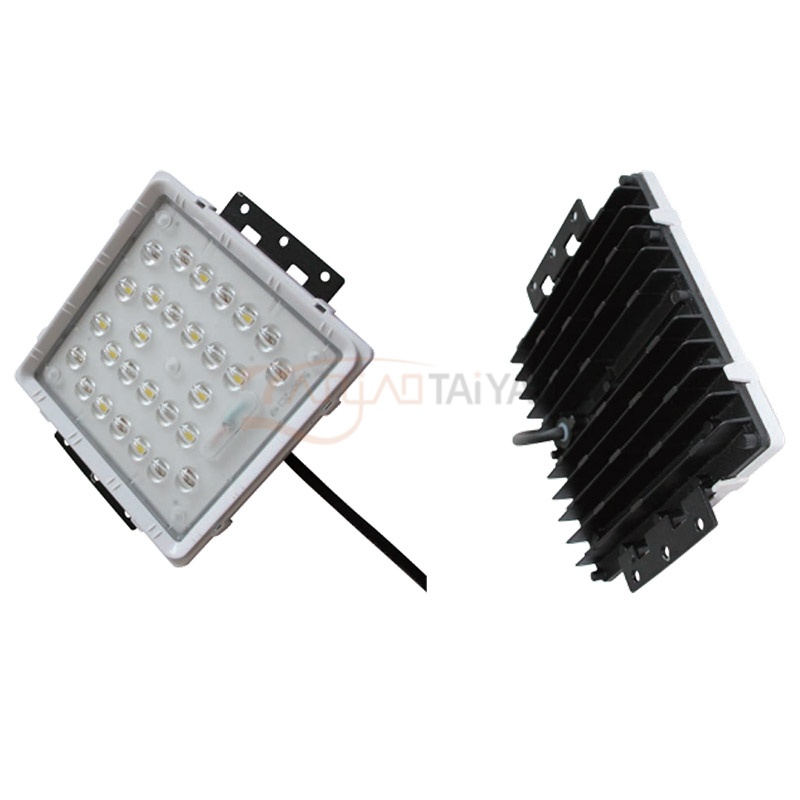

2. Easy maintenance: if any component malfunctions, only the faulty modular part needs to be replaced.
3. Convenient material management: customizable, aluminum alloy cut and formed (variable length), high commonality and standardization.

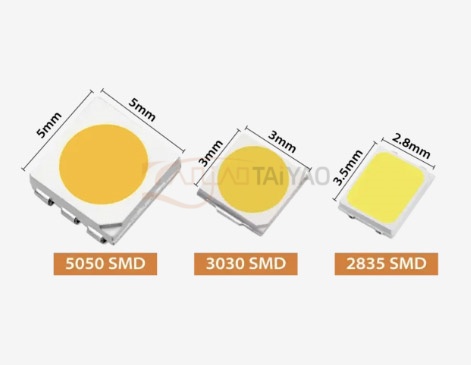

TY-TGD16 Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
IP66 for the whole TY-TGD16 LED Flood Light system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
| Power | 200W | 400W | 600W | 800W | 1200W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | ||||
| Working Voltage | 90 – 305V AC, 50/60Hz | ||||
| Beam Angle | 8°,20°,40°,60°,90°,100° | ||||

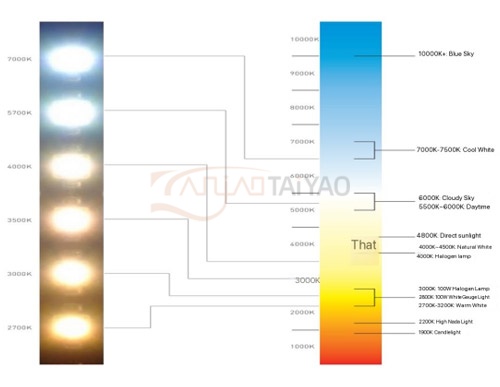

| CCT | 3000K – 6500K | ||||
| CRI | >70 (>80,>90 optional) | ||||
| LED Chip | SMD 3030 / SMD 5050 | ||||
| Luminous Efficiency | >125lm/w (SMD 3030) / >175lm/w (SMD 5050) | ||||
| Luminous Flux | 25000lm (SMD 3030) | 50000lm (SMD 3030) | 750000lm (SMD 3030) | 100000lm (SMD 3030) | 1500000lm (SMD 3030) |
| 35000lm (SMD 5050) | 70000lm (SMD 5050) | 105000lm (SMD 5050) | 150000lm (SMD 5050) | 2100000lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | ||||
| Lens Material | PC | ||||
| Product Dimension (mm) | 365*210*121 | 367*375*133 | 535*375*133 | 701*367*138 | 702*535*138 |
| N.W.(KG) | 3.1 | 6.7 | 9.8 | 12.5 | 17.7 |
| IP/IK Rate | IP66 / IK09 | ||||
| Working Temperature | -40°C~50°C, 20%~90% RH | ||||
| Life Span | >50,000 Hours | ||||
